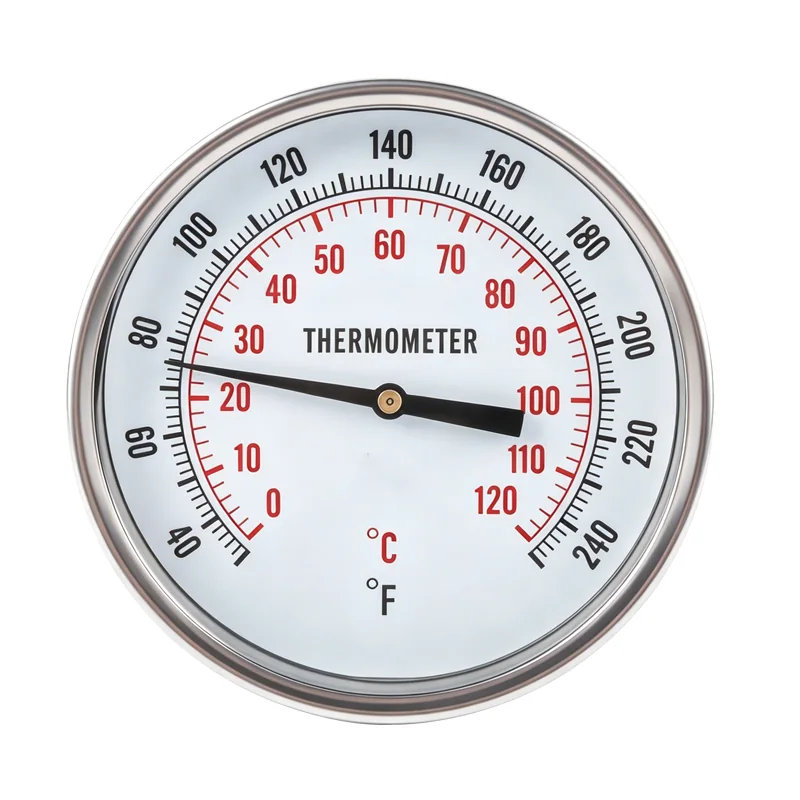

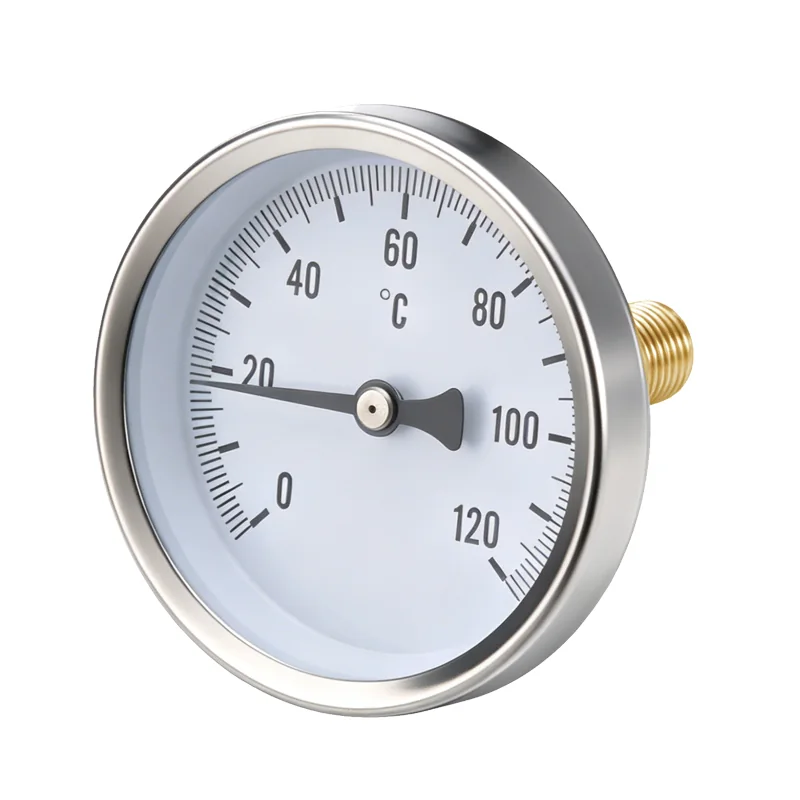

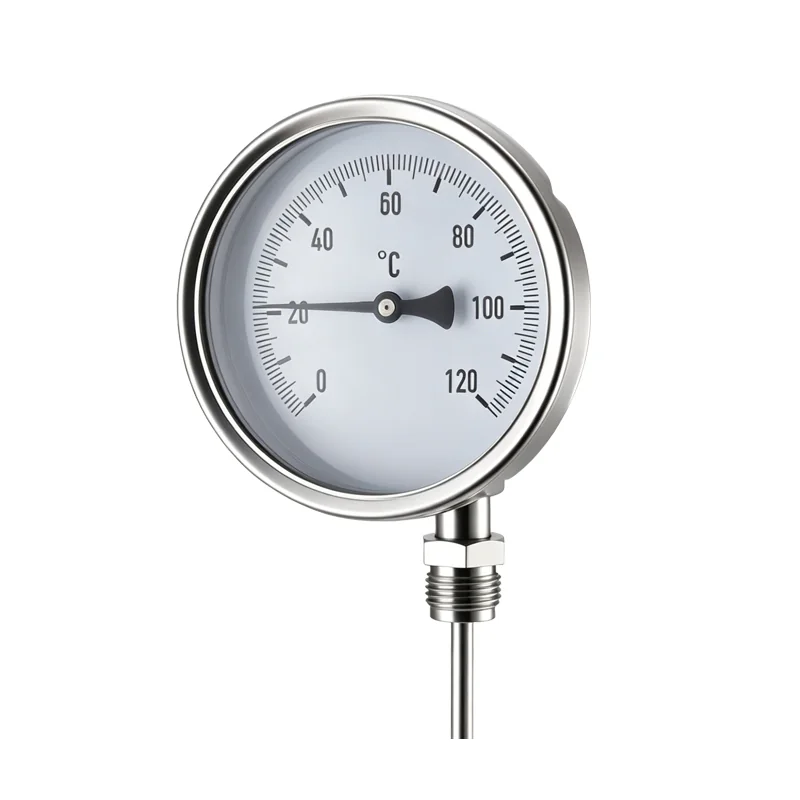

Manogauge manufactures bimetal and bimetallic thermometers for industrial temperature measurement in pipes, tanks and process equipment, offering axial and radial mounting configurations with copper alloy or stainless steel stems.
These pages cover custom OEM, China factory, explosion-proof and sanitary pressure gauge buying-intent queries, giving Googlebot a stronger internal path to rediscover and recrawl them.
Bimetal and bimetallic thermometers are selected by dial size, measuring range, stem length, axial or radial mounting, stem material, accuracy class and window option. Custom details should be confirmed by RFQ.
Two bonded metals with different thermal expansion coefficients form a helical element. As temperature changes, the differential expansion rotates the element, moving the pointer directly — no electronics, no batteries, simple and reliable for continuous process monitoring.
Boilers and steam lines, HVAC and chilled water loops, water treatment tanks, food and beverage pasteurisation, chemical reactor jackets, oil and gas separators and OEM machinery requiring reliable local temperature indication.
Final configuration still depends on medium, temperature, pressure, connection and documentation requirements.
| Item | Common options | Selection note |
|---|---|---|
| Temperature range | Common ranges from sub-zero service to 200 °C+ by model | Normal operating temperature should sit in the middle third of the dial scale. |
| Dial size | 40 / 60 / 80 mm and custom sizes by RFQ | Use larger dials for boiler rooms, elevated tanks and remote viewing. |
| Stem length | Standard and custom insertion lengths | The sensing tip must sit in the flow stream or liquid zone, not near a pipe wall or dead leg. |
| Mounting | Axial, radial or adjustable-angle designs | Confirm readability from the service walkway before choosing fixed-angle installation. |
| Thermowell | Required for pressurised or corrosive process lines | A thermowell allows removal for maintenance without opening the process line. |
For a boiler hot-water loop, the thermometer should be readable from the service aisle and inserted deep enough to measure flowing water, not pipe-wall temperature. The RFQ should include pipe size, normal water temperature, maximum temperature, connection and whether the line can be shut down for maintenance.
Use the RFQ form when you have range, connection, quantity or drawings. Use WhatsApp when you only need a quick compatibility check before preparing the full purchase file.
Temperature range, stem length, dial size and connection are the first specifications to confirm because they control readability and installation fit.
A thermowell may be required for pressure vessels, high-flow pipelines, corrosive media or maintenance-friendly installation. Confirm with the project engineer.
Yes. Send insertion length, connection thread, temperature range, dial diameter, quantity and any drawing or datasheet requirement.
Yes. Buyers use both terms for the same local temperature instrument. The key selection variables are temperature range, stem length, dial size, connection thread, mounting angle and thermowell requirement.
MOQ for standard bimetal thermometer models is typically 10–50 units. Custom stem lengths or non-standard dials may require higher minimums. Send your requirement for a confirmed MOQ and lead-time.
Yes. Sample units are available for evaluation. Submit your specification via the RFQ form and indicate your sample requirement.
