Liquid Filled Pressure Gauge Supplier

Oil-Filled Gauge
Built for Vibration

Glycerin-filled and silicone-filled pressure gauges that stabilise the pointer under vibration, pulsation and pressure spikes. 40–100 mm dials, stainless or brass wetted parts, OEM-ready.

Request a Quote → Browse Catalog
Glycerin or silicone fill — reviewed by temperature range
Stainless steel & brass wetted parts available
MOQ 10 pcs · 2–4 week lead time · Samples available
15+
Years Manufacturing
50+
Countries Exported
200+
SKUs in Catalog
10pcs
Minimum Order Qty
🏆

National High-Tech Enterprise

Certified · China Ministry of Science

📋

Invention Patent Holder

Proprietary gauge technology

🌐

KS / EN837-1 Documents

Confirmed by applicable model

⚡

OEM Private Label

Custom dial printing supported

Why Liquid-Filled

3 Reasons Engineers Choose
Oil-Filled Gauges

🛡️

Eliminates Pointer Vibration

Glycerin or silicone fill damps needle oscillation caused by pump vibration, compressor pulsation and hydraulic pressure spikes — readings stay readable at all times.

⏱️

Extends Service Life

By absorbing mechanical shock, the fill fluid reduces fatigue stress on the Bourdon tube and movement, significantly increasing MTBF in demanding environments.

🌡️

Two Fill Options

Glycerin for standard −20 to +60 °C service. Silicone oil for low-temperature applications down to −40 °C. Fill type confirmed per application requirement.

Product Range

Liquid Filled Gauge SKUs

Liquid Filled Pressure Gauge Radial ZX-06-R
ZX-06-R

Liquid-Filled Gauge — Radial

Bottom-entry oil-filled gauge for vibration and pulsation service. Glycerin or silicone fill available.

0–60 MPa · ±1.6 / 2.5% · Ø40–100 mm
View Details →
Liquid Filled Pressure Gauge Axial ZX-06-A
ZX-06-A

Liquid-Filled Gauge — Axial

Back-entry oil-filled gauge. Panel or direct-mount installation with vibration damping.

0–60 MPa · ±1.6 / 2.5% · Ø40–100 mm
View Details →
Shock Resistant Pressure Gauge
ZX-03-R

Shock-Resistant Gauge — Radial

Glycerin-filled with rubber case buffer for high-impact and high-vibration applications.

0–270 psi · ±2.5% · HVAC & hydraulic
View Details →
Stainless Steel Pressure Gauge
ZX-01-R

SS Liquid-Filled Gauge — Radial

Stainless steel case + 316L wetted parts + glycerin fill for chemical and corrosive service.

0–100 MPa · ±1.0 / 1.6% · 304/316L
View Details →
Typical Applications

Where Liquid-Filled Gauges Are Used

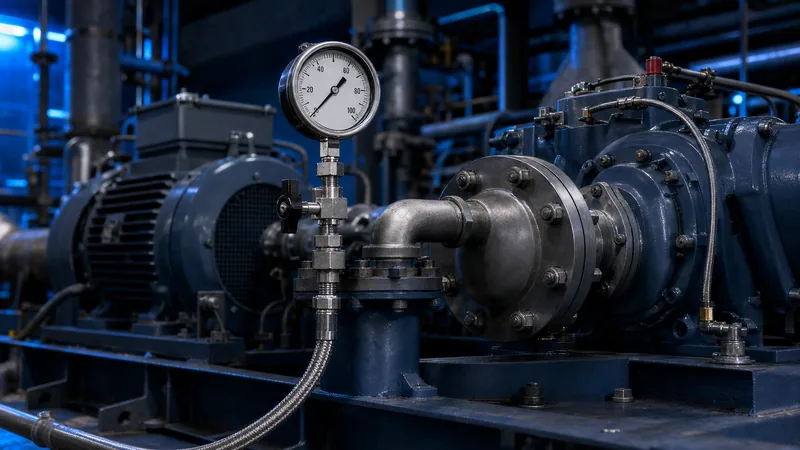

Pump and compressor room industrial application
01 · PUMPS & COMPRESSORS

Pump & Compressor Lines

Discharge pressure monitoring on reciprocating or centrifugal pumps where continuous pulsation damages dry-fill gauges within months.

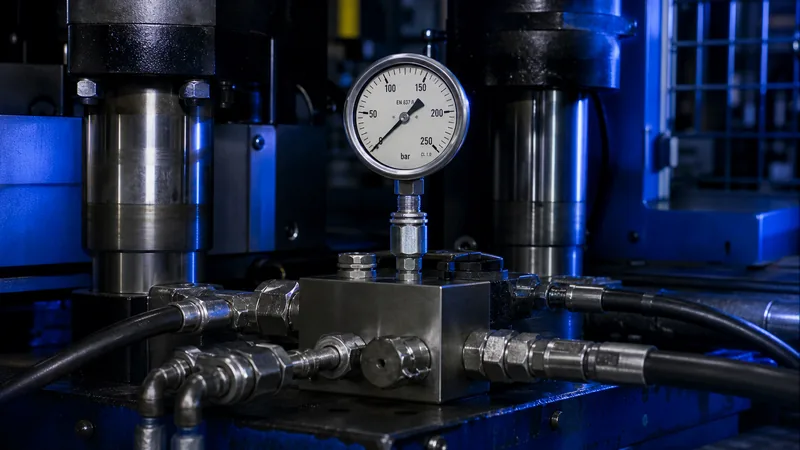

Hydraulic press and injection moulding industrial application
02 · HYDRAULICS

Hydraulic Power Units

High-cycle hydraulic systems, presses and injection moulding machines where pressure spikes and vibration are constant operating conditions.

HVAC chiller machine room application
03 · HVAC

HVAC & Refrigeration

Chiller condenser and evaporator lines, refrigerant circuits requiring stable readings in machine-room environments with compressor vibration.

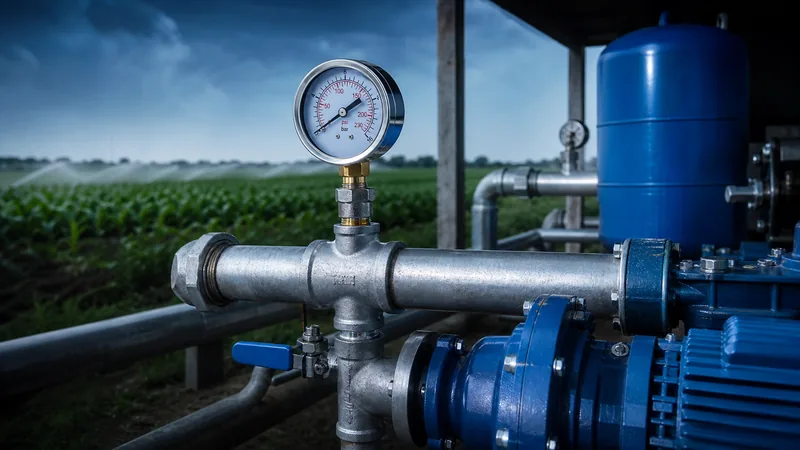

Water treatment and irrigation system application
04 · WATER SYSTEMS

Irrigation & Water Systems

Booster pump stations and drip irrigation skids with frequent pump starts that cause hammer-type pressure spikes on the gauge.

Oil and gas pipeline wellhead application
05 · OIL & GAS

Oil & Gas Upstream

Wellhead flow lines, gas injection systems and separator headers with fluctuating wellbore pressures and high vibration.

Marine ship engine room offshore application
06 · MARINE

Marine & Offshore

Ship engine rooms and offshore platform utilities where constant vessel motion demands vibration-dampened instrumentation.

Why Manogauge

Factory-Direct Liquid Filled
Gauge Supplier

01

Factory-Direct Pricing

No middlemen. All gauges manufactured at our own plant in Zhejiang, China. MOQ from 10 pcs for standard configurations.

02

Specification Confirmation

Fill fluid, wetted material, thread, dial size and accuracy class confirmed before production starts. No surprises on delivery.

03

OEM & Private Label

Custom dial printing, logo and packaging available. Suitable for distributors and OEM equipment builders globally.

04

Sample Before Bulk Order

Evaluation samples available for specification verification before committing to a production run.

Manogauge factory production floor
Send Your Spec

RFQ Checklist

Include these details for an accurate quote within 24 hours.

Submit RFQ Now →
Pressure range and unit (MPa / bar / psi)
Fill fluid (glycerin or silicone)
Connection thread (NPT / BSP / G / M)
Dial diameter (40 / 60 / 80 / 100 mm)
Wetted material (brass / 304 / 316L SS)
Mounting direction (bottom / back)
Accuracy class (±1.6% or ±2.5%)
Order quantity & delivery timeline
Buyer FAQ

Frequently Asked Questions

What is the main benefit of a liquid filled pressure gauge?

The fill fluid damps pointer vibration so readings stay clear and the Bourdon tube movement is protected from fatigue failure in vibration or pulsation service.

Glycerin vs silicone oil — which should I choose?

Glycerin is standard for −20 to +60 °C service. Silicone oil is selected for low-temperature environments down to −40 °C or where glycerin may freeze.

Can liquid filled gauges be used outdoors?

Yes, in many outdoor applications. Case material, seal type, fill fluid and working temperature range must be confirmed against site conditions before ordering.

What is the minimum order quantity (MOQ)?

MOQ is typically 10–50 pcs for standard liquid-filled models. Custom fill fluid or non-standard configurations may require higher minimums — confirm via RFQ.

Can I get a sample before bulk ordering?

Yes. Sample gauges are available for evaluation. Indicate that you need a sample unit first when submitting your RFQ form.

How long is the standard lead time?

Standard lead time is 2–4 weeks for stock configurations. Custom specifications or large volumes may require 4–6 weeks — confirm at RFQ stage.

Free Technical Guides

Download the liquid-filled vs dry gauge guide

Compare filled and dry pressure gauges for vibration, pulsation, reading stability, temperature limits and maintenance before choosing a gauge for machinery or HVAC service.

Download Liquid-Filled vs Dry Pressure Gauge PDF → All technical PDFs
