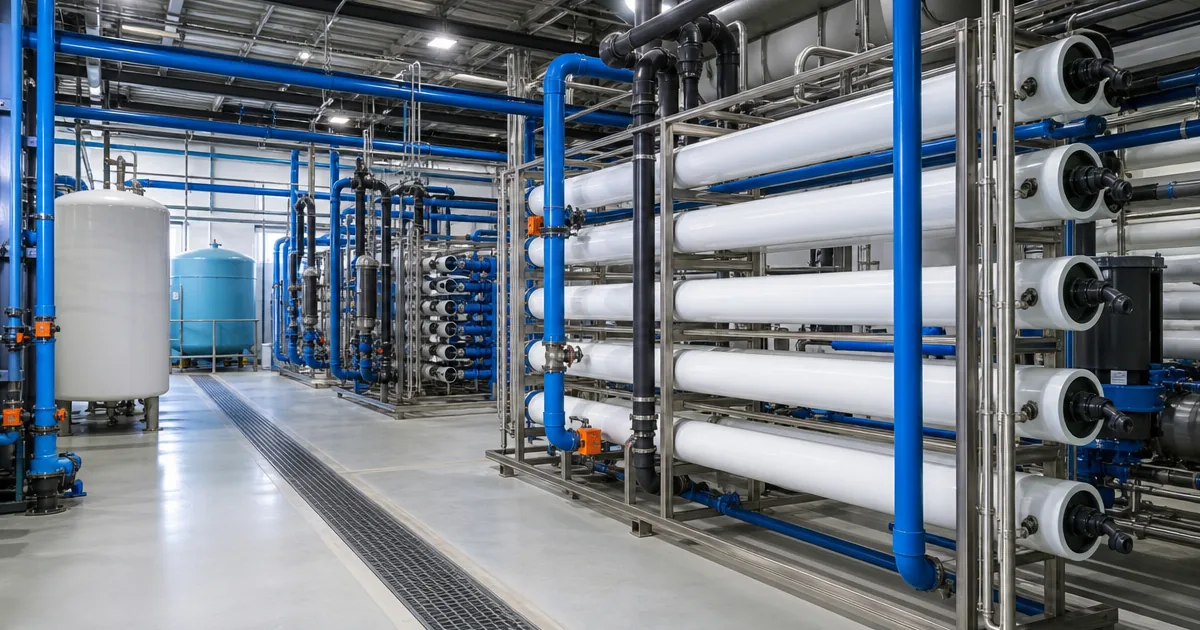

Industrial wastewater membrane filtration differential pressure monitoring is becoming a practical control point as factories push for water reuse, lower discharge volume, and more stable operating cost. In textile dyeing, plating, electronics, food processing, chemical, and machinery plants, wastewater pretreatment and UF/RO membrane skids often see changing solids, oils, salts, and cleaning chemicals. A pressure gauge or differential pressure instrument does not treat the water by itself, but it gives operators an early view of resistance inside prefilters, cartridge filters, membrane modules, and pump lines. When differential pressure rises before flow drops, the plant can clean, backwash, isolate, or replace elements before a fouled membrane becomes a shutdown.
1. Why industrial wastewater reuse needs pressure signals
Industrial wastewater reuse has moved from a sustainability slogan to a daily production issue. Water-stressed regions, stricter discharge permits, higher wastewater treatment fees, and corporate carbon targets are pushing factories to recover more process water. Membrane filtration is often placed after sedimentation, flotation, biological treatment, or media filtration so the plant can polish water for cooling tower makeup, rinsing, boiler pretreatment, or process reuse.
The problem is that industrial wastewater is rarely stable. One shift may carry more suspended solids, another may contain surfactant, oil, chloride, metal ions, or cleaning chemicals. Operators need a simple way to see whether the system is still moving water through filters and membranes at acceptable resistance. That is where industrial wastewater membrane filtration differential pressure monitoring becomes valuable: it turns hidden hydraulic resistance into a visible operating number.
Reuse projects can reference the EPA 2012 Guidelines for Water Reuse.
Browse Pressure Gauges for Water Treatment ->Explore 143+ industrial gauge models→2. How membrane filtration differential pressure exposes fouling early
Differential pressure is the pressure difference between two points. Across a filter housing or membrane module, it is usually the inlet pressure minus the outlet pressure. A clean element has a known baseline pressure drop. As solids, colloids, oil, scale, or biological growth accumulate, the same flow needs more force to pass through the media, so the differential pressure rises.
This rise often appears before a large flow-rate drop or an obvious water-quality alarm. For example, a cartridge filter protecting an RO skid may show a rising DP while permeate flow still looks normal. If the plant waits until flow collapses, the fouling load may already have moved downstream to the membrane. For this reason, pressure gauges and differential pressure gauges around prefilters and membrane skids are practical early-warning instruments, not decorative accessories.
Membrane process teams can compare practice with AWWA M53 membrane filtration guidance.

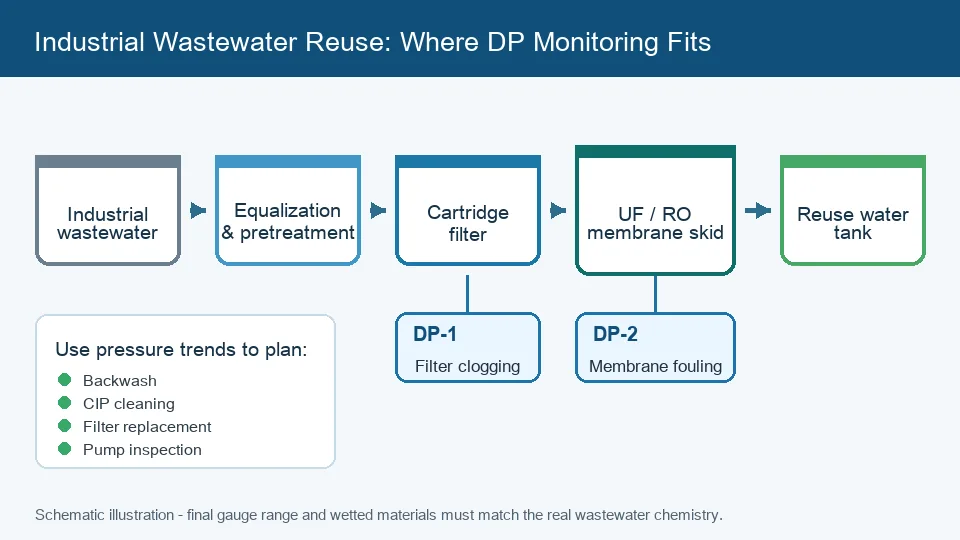

3. Where to install pressure gauges in a wastewater membrane skid
Useful measurement points are normally selected from the actual piping drawing. Common positions include pump suction and discharge, prefilter inlet and outlet, bag or cartridge filter inlet and outlet, UF membrane feed and filtrate headers, RO feed and concentrate headers, and service points before heat exchangers or dosing sections.
A pair of local pressure gauges can let maintenance staff compare readings during inspection. A dedicated differential pressure gauge or differential pressure transmitter can provide a direct pressure-drop value for alarms and trend records. For a deeper product selection reference, see our differential pressure gauge selection guide. The final installation should include isolation valves, safe drain or vent points, and enough straight pipe or stable tapping points to avoid misleading pulsation readings.
For corrosive wastewater media, review 316L stainless steel vs. brass for corrosive wastewater media.
Request a Wastewater Gauge Quote ->Our engineers respond within 24 hours→4. Wetted material and diaphragm protection for dirty or corrosive wastewater
Industrial wastewater is not the right place to assume that any low-cost gauge will survive. Brass wetted parts may be acceptable for clean water utilities, but chloride-rich wastewater, acidic or alkaline cleaning chemicals, and suspended solids can shorten service life quickly. 316L stainless steel is a common starting point for better corrosion resistance, while aggressive media may require a diaphragm seal, PTFE-lined protection, or a different alloy confirmed by the process owner.

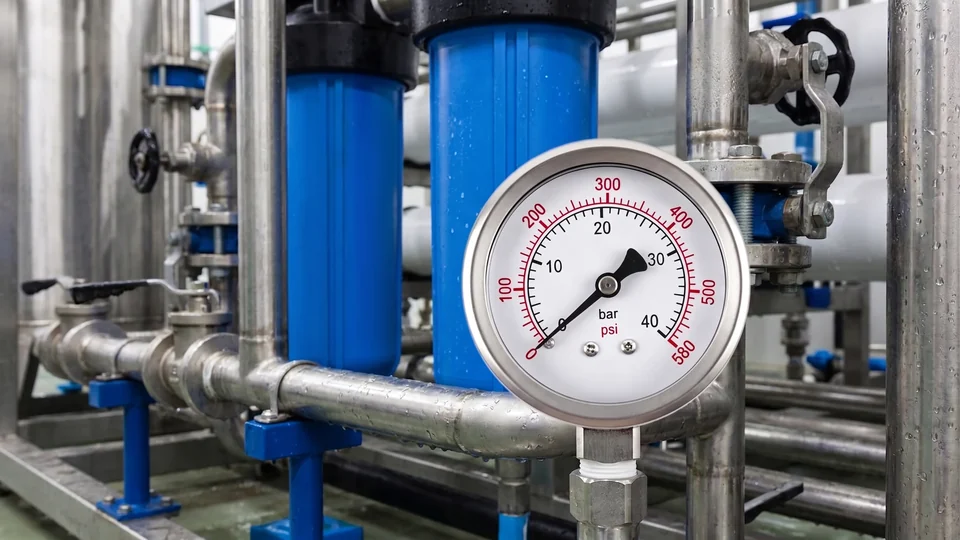

A diaphragm-protected pressure gauge can isolate the Bourdon tube or sensing element from dirty, viscous, crystallizing, or corrosive wastewater. This is especially relevant around chemical cleaning lines, concentrated brine, high-solids pretreatment, and sludge-related service. Material choice must still be checked against the real wastewater analysis, temperature, pressure range, and cleaning chemicals. For general material comparison, see our 316L stainless steel vs brass pressure gauge guide.
Dirty media often benefits from diaphragm pressure gauge selection for slurry and dirty media.
5. Using pressure trends to plan cleaning and reduce shutdown risk
A single pressure reading tells the operator what is happening now; a trend tells the maintenance team what will happen next. Plants can record clean-start differential pressure after filter replacement, backwash, or CIP, then compare the daily rise under similar flow. A slow rise may indicate normal fouling. A sudden rise may indicate inlet water upset, dosing error, valve misposition, collapsed filter media, or a blocked line.
This pressure trend supports practical decisions: when to backwash, when to replace cartridge filters, when to start chemical cleaning, when to inspect a pump, and when to stop a membrane skid before damage spreads. Manogauge can supply mechanical pressure gauges, stainless steel gauges, diaphragm pressure gauges, and differential pressure references for engineering teams building or maintaining industrial wastewater reuse systems. Final pressure range, connection, material, accuracy, and documentation should be confirmed against the actual skid design and wastewater chemistry.
For DP range and installation details, see the differential pressure gauge selection guide and pressure gauge installation best practices.
Key takeaways
- Differential pressure is an early warning signal for membrane fouling and filter clogging in industrial wastewater reuse systems.
- Useful gauge points include pump discharge, prefilter inlet/outlet, cartridge filter inlet/outlet, UF or RO membrane feed and concentrate headers.
- 316L stainless steel wetted parts are commonly preferred over brass for wastewater, chloride, and cleaning-chemical exposure, but compatibility must be confirmed by the process owner.
- Dirty or corrosive wastewater may require diaphragm seals or isolation to keep solids and chemicals away from the measuring element.
- Trend records help plants schedule backwash, CIP, filter replacement, and pump inspection before water quality or flow becomes unstable.
Related products
- Diaphragm Pressure Gauge - Type 1 (ZX-05-1) — 0–60 kPa
- Isolating-Diaphragm Gauge - Radial Type 1 (ZX-04-R1) — 0–60 MPa
Frequently asked questions
What is industrial wastewater membrane filtration differential pressure monitoring?
It is the practice of measuring pressure before and after filters or membrane modules in an industrial wastewater reuse system. The pressure difference shows the hydraulic resistance created by fouling, clogging, scale, solids, or biological growth.
Where should gauges be installed in a wastewater membrane system?
Typical points include pump suction and discharge, prefilter inlet and outlet, cartridge filter inlet and outlet, UF or RO membrane feed and outlet headers, and service points near cleaning or dosing lines. Final positions should follow the skid piping drawing.
Is 316L stainless steel enough for all industrial wastewater?
No. 316L stainless steel is a common starting point for better corrosion resistance than brass, but wastewater chemistry can vary widely. pH, chloride, temperature, cleaning chemicals, oils, solids, and concentration cycles must be checked before final material selection.
When is a diaphragm pressure gauge useful in wastewater service?
A diaphragm seal or diaphragm pressure gauge is useful when the wastewater is dirty, viscous, corrosive, crystallizing, or likely to clog the small passage of a standard Bourdon-tube gauge. It helps isolate the measuring element from the process fluid.
Can pressure gauges replace water-quality instruments?
No. Pressure gauges and differential pressure instruments monitor hydraulic resistance and equipment condition. They should be used together with flow, conductivity, turbidity, pH, ORP, and water-quality instruments when the treatment process requires them.
